How to Use a Terminal Block
Summary

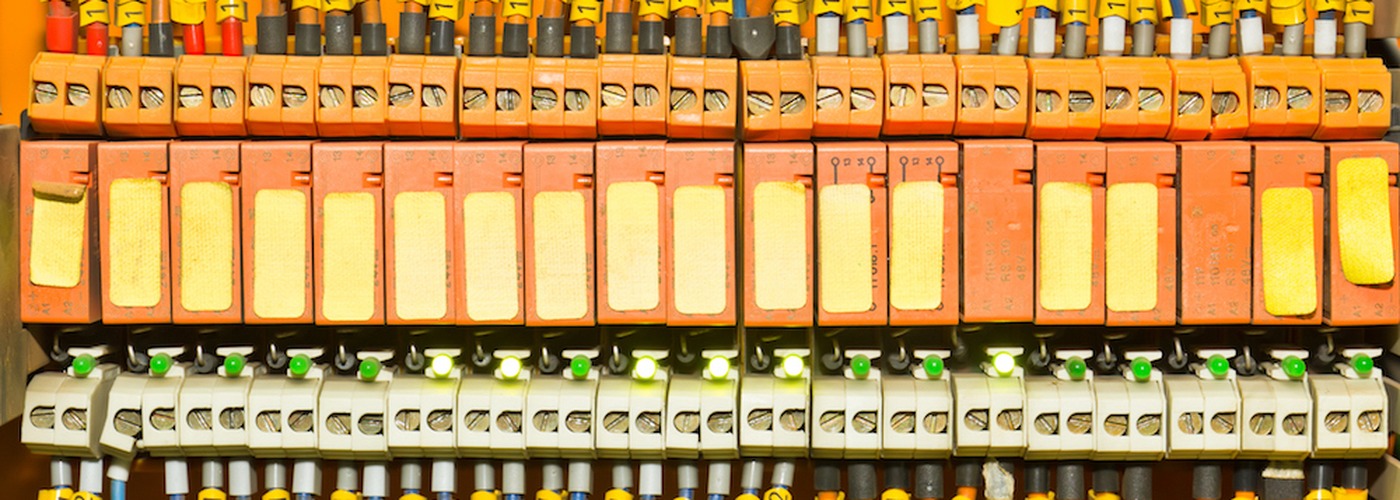

Terminal blocks give electrical systems a secure, organized point for joining and distributing wires. This guide explains how to use a terminal block and how to wire a terminal block, with step-by-step instructions for both screw and plug-in connections.
It covers common terminal block types and connector styles, how to open a terminal block, and how to test connections once wiring is complete. A comparison of terminal blocks vs. terminal strips vs. barrier terminal blocks clarifies the differences. A mistakes-to-avoid section rounds out the guide.
To use a terminal block, de-energize the circuit, strip the wire, insert it into the terminal, and secure the connection with a screw, spring clamp, or push-in mechanism depending on the terminal block type. Below, we walk through how to wire a terminal block, covering both screw-in and plug-in connections. If you need to organize connecting wires in a panel, enclosure, or piece of equipment, wiring a terminal block correctly is a straightforward process once you know the terminal block type and connector style you’re working with. This guide covers how to open a terminal block, how to connect wire to a terminal block, basic safety steps, and how the main terminal block types compare. If you need help identifying the right terminal block connector type for your application, contact our team.
Determine Which Terminal Block Type You Need
Knowing which terminal block type you have changes how you’ll wire it. Do you have a screw-in or a plug-in connection? Screw-in terminal blocks secure wires with a retaining screw and are commonly used with equipment that doesn’t require high-voltage protection. Plug-in terminal blocks use a male connector on the wire end that seats into a female port on the block, creating a secure connection without a screwdriver. You’ll find plug-in blocks in applications such as automotive fuse boxes. Terminal blocks come in different shapes and sizes, so choose one sized for the application it will be installed in. Common terminal block types include:
- Ground Terminal Blocks
- Fused Connection Terminals
- Thermocouple Terminal Blocks
- I/O Blocks and Sensor Blocks
- Disconnect Terminal Blocks
- Power Distribution Blocks
Types of Connectors for Terminal Blocks
Terminal block connectors are one category within the broader range of electrical connector types. The five connection methods below cover most terminal block applications.
- Screw terminal: The most common connection method, using a retaining screw to clamp the wire in place.
- Spring clamp: Uses spring tension to hold the wire without a screw, allowing faster connection and disconnection.
- Push-in terminal blocks: Wires are inserted directly and held by an internal spring mechanism.
- Insulation Displacement Connector (IDC): Cuts through wire insulation during connection, eliminating the need to strip the wire first.
- Barrier terminal block: Includes an insulating barrier between adjacent terminals to reduce the risk of accidental contact between connections.
How to Wire a Terminal Block
The steps for how to wire a terminal block depend on the connector type, but the core process is similar across screw and plug-in styles. Always start with the safety basics below before making any connection.
Before you begin: Turn off power to the circuit or equipment at the source and verify it’s de-energized before working on any terminal block connection. Never wire a terminal block on a live circuit.
How to Connect Wire to a Screw Terminal Block
- Confirm the equipment is powered off before proceeding.
- Strip about one inch of insulation from the end of the wire.
- Loosen the terminal block’s retaining screw, then insert the bare wire into the opening.
- Tighten the screw until the connection is secure. A loose wire generates heat and can melt the insulation or create a fire hazard.
How to Connect Wire to a Plug-in Terminal Block
- Position the terminal block where it will be installed.
- Run the electrical wires to the terminal block and connect the male terminals to the corresponding female ports.
- Confirm each connection is fully seated and secure before restoring power.
How to Open a Terminal Block
To open a screw terminal block, loosen the retaining screw with a screwdriver until the wire releases. Spring clamp and push-in terminal blocks typically release with a lever or by inserting a small flathead screwdriver into the release slot, depending on the manufacturer’s design. Always confirm the circuit is de-energized before opening any terminal block connection.
Terminal Blocks vs. Terminal Strips vs. Barrier Terminal Blocks
These terms are often used interchangeably, but they refer to different configurations. Use the comparison below as a quick reference.
| Type | Configuration | Typical Use |
|---|---|---|
| Terminal Block | Single modular unit connecting individual wires via screw, spring, or push-in mechanism. | Individual circuit connections in panels and enclosures. |
| Terminal Strip | A row of multiple terminal blocks mounted together on a common rail or base. | Organizing several wire connections in one location. |
| Barrier Terminal Block | Includes a raised insulating barrier between adjacent terminals. | Applications where separation between connections reduces the risk of accidental contact. |
Terminal Block Wiring Mistakes to Avoid
- Leaving the circuit energized. Always de-energize the circuit at the source before wiring or opening a terminal block.
- Under- or over-stripping the wire. Too little exposed wire creates a weak connection; too much leaves bare conductor exposed outside the terminal.
- Under-tightening the retaining screw. A loose screw connection generates heat over time and can lead to equipment failure or a fire hazard.
- Mixing wire gauges without checking the terminal rating. Confirm the terminal block is sized for the wire gauge being used before making the connection.
- Skipping the post-wiring check. Always verify connections are secure and not warm to the touch after restoring power.
Test the Terminal Block Connection
After securing the connections, test the equipment to confirm everything is working as expected. Check the terminal block itself to make sure connections aren’t hot to the touch and remain secure. As with the wiring step, loose connections can damage equipment and create a fire hazard, so recheck any connection that feels warm or shows signs of movement.
Need Help Sourcing Terminal Blocks or Connectors?
Gateway Cable Company supplies terminal blocks, connectors, receptacles, and cable assemblies for military, defense, and industrial applications. If you have questions about terminal block connector types or need help specifying the right part for your project, our team can help.
Frequently Asked Questions
How do you wire a terminal block?
To wire a terminal block, turn off power to the circuit, strip about one inch of insulation from the wire, insert the wire into the terminal opening, and secure it using a screw, spring clamp, or push-in mechanism depending on the terminal block type. Confirm the connection is tight before restoring power.
How do you use a terminal block connector?
To use a terminal block connector, match the connector type (screw, spring clamp, push-in, IDC, or barrier) to your application, then de-energize the circuit, prepare the wire, and insert or clamp it according to that connector’s mechanism. Screw and barrier terminal blocks are secured with a retaining screw; spring clamp and push-in types secure the wire without tools.
How do you open a terminal block?
Screw terminal blocks open by loosening the retaining screw with a screwdriver. Spring clamp and push-in terminal blocks typically open with a release lever or by inserting a small flathead screwdriver into the release slot, depending on the manufacturer’s design.
How do you connect wire to a screw terminal block?
Turn off the equipment, strip about one inch of insulation from the wire, loosen the terminal block’s retaining screw, insert the bare wire into the opening, and tighten the screw until the connection is secure.
What is the difference between a terminal block and a terminal strip?
A terminal block is a single modular unit that connects individual wires through a screw, spring, or push-in mechanism, while a terminal strip refers to a row of multiple terminal blocks mounted together to organize several connections in one location.
