Cable Assembly, Power, Electrical

TGC2336-4 - TGC2336 (1-6) - 11682337 (1-6) - TGC2379 (1-6) - A-A-52499 (5-14) - 5252504 - 5252505 - 5252506 - 5252507 - TGC2336 (1-6)A - TGC2338-LC40 - TGC26-SB175 - TGC MODULAR KIT - TGC2636-ITT4S - TGC03165 ASSY - TGC2436-6 - 72-228

TGC2338-LC40 KIT

MFR P/N: TGC2338-LC40
TGC2338-LC40 KIT
Specifications

MATERIAL:

  • NATO CABLE ASSEMBLY WITH 6 FT MAIN STUB
  • VARYING LENGTH AND FINISH

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANT TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE

TGC26-SB175 KIT

MFR P/N: TGC26-SB175
TGC26-SB175 KIT
Specifications

MATERIAL:

  • NATO PLUG (BASED ON CUSTOMER SPECS)
  • INDUSTRIAL PLUG

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANT TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE

MATING INTERVEHICLE PLUG:

  • 100 AMP NATO PLUG TO INDUSTRIAL PLUG

TGC MODULAR KIT

MFR P/N: TGC MODULAR KIT
TGC MODULAR KIT
Specifications

MATERIAL:

  • INDUSTRIAL CLAMP
  • NATO PLUG (BASED ON CUSTOMER SPECS)
  • CONNECTOR STUB (FOR EXTENSION OF LENGTH)

ELECTRICAL:

  • STARTING KIT FOR POWER TAKE-OFF FROM
  • NATO PLUG TO 350 AMP INDUSTRIAL PLUGS

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE

MATING INTERVEHICLE PLUG:

  • 500 MAP BATTERY CLAMPS OR NATO PLUGS

POWER DISTRIBUTION TGC2636-ITT4S

MFR P/N: TGC2636-ITT4S
POWER DISTRIBUTION TGC2636-ITT4S
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. PROCUREMENT APPROVED, BY US ARMY TANK-AUTOMOTIVE COMMAND
Specifications

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE

POWER DISTRIBUTION TGC03165 ASSY

MFR P/N: TGC03165 ASSY
POWER DISTRIBUTION TGC03165 ASSY
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. PROCUREMENT APPROVED, BY US ARMY TANK-AUTOMOTIVE COMMAND
Specifications

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE

POWER DISTRIBUTION TGC2436-6

MFR P/N: TGC2436-6
POWER DISTRIBUTION TGC2436-6
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. PROCUREMENT APPROVED, BY US ARMY TANK-AUTOMOTIVE COMMAND
Specifications

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE

POWER DISTRIBUTION 72-228

MFR P/N: 72-228
POWER DISTRIBUTION 72-228
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. PROCUREMENT APPROVED, BY US ARMY TANK-AUTOMOTIVE COMMAND
Specifications

ELECTRICAL:

  • 15 AMP

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE

NATO SLAVE CABLE, INTERVEHICLE POWER – 11682337 (1-6)

MFR P/N: 11682337 (1-6)
NATO SLAVE CABLE, INTERVEHICLE POWER – 11682337 (1-6)
Scope
    1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
    2. VARIATIONS:
TACOM
DESCRIPTION
NSN
NIN
11682337-1
20 FOOT ASSEMBLY
2590-00-398-6527
003986527
11682337-2
50 FOOT ASSEMBLY
2590-00-372-9193
003729193
11682337-3
6 FOOT ASSEMBLY
11682337-4
12 FOOT ASSEMBLY
2590-01-222-7942
012227942
11682337-5
75 FOOT ASSEMBLY
11682337-6
35 FOOT ASSEMBLY
Specifications

MATERIAL:

  • STRANDING: COPPER 19X7X25
  • CABLE: 2/0
  • TERMINALS: COPPER, TIN

ENVIRONMENTAL:

  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

MATING INTERVEHICLE PLUG:

  • MPN TGC2338
  • MPN 11682338 REV. B
  • NSN 5935-00-567-0128

SLAVE CABLE, POWER TAKEOFF – TGC2336 (1-6)

MFR P/N: TGC2336 (1-6)
SLAVE CABLE, POWER TAKEOFF – TGC2336 (1-6)
Scope
    1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
    2. VARIATIONS:
TACOM
DESCRIPTION
NSN
NIN
11682336-1A
20 FOOT ASSEMBLY
11682336-2A
50 FOOT ASSEMBLY
11682336-3A
6 FOOT ASSEMBLY
11682336-4A
12 FOOT ASSEMBLY
6150-01-533-5296
015335296
11682336-5A
75 FOOT ASSEMBLY
11682336-6A
35 FOOT ASSEMBLY
Specifications

MATERIAL:

  • STRANDING: COPPER 19X7X25
  • CABLE: 2/0
  • TERMINALS: COPPER, TIN
  • CONNECTORS: TGC2338

ENVIRONMENTAL:

  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE
  • WATERPROOF

MATING INTERVEHICLE PLUG:

  • MPN 11682345
  • MPN 11674728
  • MPN MS52131
  • MPN 11677570
  • MPN 11682350
  • MPN 12472733

CABLE ASM-SLAVE, 34” – 5252507

MFR P/N: 5252507
CABLE ASM-SLAVE, 34” – 5252507
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-I-45208
  2. GATEWAY CABLE COMPANY P/N 5252507
Specifications

MATERIAL:

  • INSULATOR: ANDERSON POWER POLE SB SERIES
  • CONTACT: ANDERSON POWER SB SERIES CONTACTS
  • CABLE: 2 CONDUCTOR, 6 AWG
  • TERMINAL: 3/8 INSULATED RING TERMINAL/ NEGATIVE
  • TERMINAL: #10 INSULATED RING TERMINAL/ POSITIVE

ELECTRICAL:

  • 6 AWG FULLY ANNEALED STRANDED BARE COPPER PER ASTM B-174500
  • EXCELLENT FOR USE ON TOOLS, CRANES, HOISTS, HEAVY CONSTRUCTION EQUIPMENT, PROCESSING EQUIPMENT, AND OTHER INDUSTRIAL AND UTILITY PORTABLE POWER APPLICATIONS

ENVIRONMENTAL:

  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

MATING INTERVEHICLE PLUG:

  • ANDERSON POWER POLE SB SERIES

CABLE ASM-SLAVE, 16” – 5252506

MFR P/N: 5252506
CABLE ASM-SLAVE, 16” – 5252506
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-I-45208
  2. GATEWAY CABLE COMPANY P/N 5252506
Specifications

MATERIAL:

  • INSULATOR: ANDERSON POWER POLE SB SERIES
  • CONTACT: ANDERSON POWER SB SERIES CONTACTS
  • CABLE: 2 CONDUCTOR, 6 AWG

ELECTRICAL:

  • 6 AWG FULLY ANNEALED STRANDED BARE COPPER PER ASTM B-174500
  • EXCELLENT FOR USE ON TOOLS, CRANES, HOISTS, HEAVY CONSTRUCTION EQUIPMENT, PROCESSING EQUIPMENT, AND OTHER INDUSTRIAL AND UTILITY PORTABLE POWER APPLICATIONS

ENVIRONMENTAL:

  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

MATING INTERVEHICLE PLUG:

  • ANDERSON POWER POLE SB SERIES

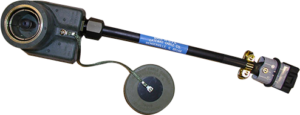

CABLE ASM-SLAVE, 20” – 5252505

MFR P/N: 5252505
CABLE ASM-SLAVE, 20” – 5252505
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E) & MIL-I-45208
  2. GATEWAY CABLE COMPANY P/N 5252505
Specifications

MATERIAL:

  • INSULATOR: ANDERSON POWER POLE SB SERIES
  • CONTACT: ANDERSON POWER SB SERIES CONTACTS
  • CABLE: 2 CONDUCTOR, 8 AWG
  • CONNECTOR: TGC2600

ELECTRICAL:

  • 8 AWG FULLY ANNEALED STRANDED BARE COPPER PER ASTM B-174500.
  • EXCELLENT FOR USE ON TOOLS, CRANES, HOISTS, HEAVY CONSTRUCTION EQUIPMENT, PROCESSING EQUIPMENT, AND OTHER INDUSTRIAL AND UTILITY PORTABLE POWER APPLICATIONS.

ENVIRONMENTAL:

  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

MATING INTERVEHICLE PLUG:

  • ANDERSON POWER POLE SB SERIES
  • MPN: 11682345
  • MPN: 11674728
  • MPN: 11677570
  • MPN: 11682350
  • MPN: MS52131-1

CABLE ASM-SLAVE, 40 FOOT – 5252504

MFR P/N: 5252504
CABLE ASM-SLAVE, 40 FOOT – 5252504
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-I-45208
  2. GATEWAY CABLE COMPANY P/N 5252504
Specifications
MATERIAL:
  • INSULATOR: ANDERSON POWER POLE SB SERIES
  • CONTACT: ANDERSON POWER SB SERIES CONTACTS
  • CABLE: 2 CONDUCTOR, 6 AWG
ELECTRICAL:
  • 6 AWG FULLY ANNEALED STRANDED BARE COPPER PER ASTM B-174500E
  • EXCELLENT FOR USE ON TOOLS, CRANES, HOISTS, HEAVY CONSTRUCTION EQUIPMENT, PROCESSING EQUIPMENT, AND OTHER INDUSTRIAL AND UTILITY PORTABLE POWER APPLICATIONS.
ENVIRONMENTAL:
  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE
MATING INTERVEHICLE PLUG:
  • ANDERSON POWER POLE SB SERIES

BATTERY CABLE, LEAD, ELECTICAL – A-A-52499 (5-14)

Product Data Sheet
MFR P/N: A-A-52499 (5-14)
BATTERY CABLE, LEAD, ELECTICAL – A-A-52499 (5-14)
Scope
    1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
    2. VARIATIONS:
TACOM
DESCRIPTION
NSN
NIN
A-A52499-5
8.25” CABLE LEAD
2590-00-080-7094
000807094
A-A52499-6
9.25” CABLE LEAD
6150-00-930-3149
009303149
A-A52499-7
10.50” CABLE LEAD
2590-00-852-8493
008528493
A-A52499-8
17.25” CABLE LEAD
5995-00-866-5291
008665291
A-A52499-9
18.25” CABLE LEAD
2590-00-958-9409
009589409
A-A52499-10
24.75” CABLE LEAD
5995-00-930-5152
009305152
A-A52499-11
27.75” CABLE LEAD
2590-00-828-8683
008288683
A-A52499-12
29.75” CABLE LEAD
2590-00-080-7096
000807096
A-A52499-14
42” CABLE LEAD
6150-00-068-2529
000682529
Specifications

MATERIAL:

  • CABLE: M13486/1-14
  • TERMINALS: TERMINAL LUG BOTH ENDS SINGLE CONDUCTOR – COPPER, TIN

ENVIRONMENTAL:

  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

NATO SLAVE CABLE KIT, POWER SPECIAL – TGC2379 (1-6)

MFR P/N: TGC2379 (1-6)
NATO SLAVE CABLE KIT, POWER SPECIAL – TGC2379 (1-6)
Scope
    1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
    2. KIT INCLUDES: 11682337, TGC2338, & 11677570(2-EACH)
    3. VARIATIONS:
TACOM
DESCRIPTION
NSN
NIN
11682379-1
20 FOOT ASSEMBLY
2590-00-148-7961
001487961
11682379-2
50 FOOT ASSEMBLY
2590-00-363-7102
003637102
11682379-3
6 FOOT ASSEMBLY
11682379-4
12 FOOT ASSEMBLY
2590-01-222-7946
012227946
11682379-5
75 FOOT ASSEMBLY
11682379-6
35 FOOT ASSEMBLY
6150-01-245-2441
012452441
Specifications

MATERIAL:

  • STRANDING: COPPER 19X7X25
  • CABLE: 2/0
  • TERMINALS: COPPER, TIN
  • CONNECTORS: TGC2338
  • ADAPTERS: 11677570

ENVIRONMENTAL:

  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE
  • WATERPROOF

MATING INTERVEHICLE PLUG:

  • MPN 11682345
  • MPN 7321299
  • MPN 11674728
  • MPN MS75058-1
  • MPN MS52131
  • MPN 11682350
  • MPN 12472733
