Military Receptacle Assemblies

57K0476 - 1533720 - TGC2338-3728 - TGC27-1533270 - TGC2376-1A - TGC2336-4-6205 - TGC26-HAL

TGC27-1533270

MFR P/N: TGC27-1533270
TGC27-1533270
Request A Quote
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. PROCUREMENT APPROVED, BY US ARMY TANK-AUTOMOTIVE COMMAND
  3. CONFORM TO NATO STANAG 4077
Specifications

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

TGC2336-1A

MFR P/N: TGC2376-1A
TGC2336-1A
Request A Quote
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. PROCUREMENT APPROVED, BY US ARMY TANK-AUTOMOTIVE COMMAND
  3. CONFORM TO NATO STANAG 4076
Specifications

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

TGC2336-4-6205

MFR P/N: TGC2336-4-6205
TGC2336-4-6205
Request A Quote
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. PROCUREMENT APPROVED, BY US ARMY TANK-AUTOMOTIVE COMMAND
  3. CONFORM TO NATO STANAG 4075
Specifications

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

TGC26-HAL

MFR P/N: TGC26-HAL
TGC26-HAL
Request A Quote
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. PROCUREMENT APPROVED, BY US ARMY TANK-AUTOMOTIVE COMMAND
  3. CONFORM TO NATO STANAG 4074
Specifications

ENVIRONMENTAL:

  • WATERPROOF
  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

24 VDC CABLE ASSEMBLY POWER SUPPLY BOX – TGC2338-3728

MFR P/N: TGC2338-3728
24 VDC CABLE ASSEMBLY POWER SUPPLY BOX – TGC2338-3728
Request A Quote
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. CONFORMS TO NATO STANAG 4074
  3. GATEWAY CABLE COMPANY P/N TGC2338-3728 (ALT P/N 12301352)
  4. NSN: 5998-01-451-2379

*TGC3728 is available for purchase, please contact us for pricing*

Specifications

MATERIAL:

  • INSULATOR: MOLDED RUBBER
  • CONTACTS: COPPER ALLOY ELECTROLESS NICKEL FINISH
  • RECEPTICLE DUST CAP: POLYCARBONATE
  • CABLE: 2/0 AWG MIL-PRF-62122(E)

ELECTRICAL:

  • 24-28 VDC
  • 500 AMPS CONTINUOUS DUTY
  • 1000 AMPS OVERLOAD CAPACITY (2 MINUTES)

ENVIRONMENTAL:

  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

MATING INTERVEHICLE PLUG:

  • MPN 11682338
  • MPN MS52129-1
  • MFR TGC2338
  • MPN 11682345
  • MPN 11674728
  • MPN 11682350
  • MPN MS52131-1

24 VDC CABLE ASSEMBLY POWER SUPPLY BOX – 1533720

MFR P/N: 1533720
24 VDC CABLE ASSEMBLY POWER SUPPLY BOX – 1533720
Request A Quote
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. CONFORMS TO NATO STANAG 4074
  3. GATEWAY CABLE COMPANY P/N 1533720
Specifications

MATERIAL:

  • INSULATOR: MOLDED RUBBER
  • CONTACTS: COPPER ALLOY, ELECTROLESS NICKEL FINISH
  • RECEPTICLE DUST CAP: POLYCARBONATE
  • ENCLOSURE: STEEL, POLYESTER POWDER COATED

ELECTRICAL:

  • 24-28 VDC
  • 500 AMPS CONTINUOUS DUTY

ENVIRONMENTAL:

  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

MATING INTERVEHICLE PLUG:

  • MPN 11682338
  • MPN MS52129-1
  • MFR TGC2338
  • MFR TGC2460
  • MFR TGC2600
  • MFR TGC2700

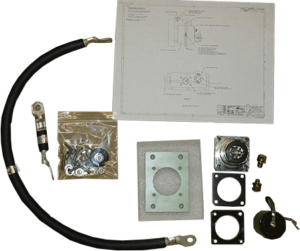

VEHICLE RECEPTACLE ASSEMBLY KIT – 57K0476

MFR P/N: 57K0476
VEHICLE RECEPTACLE ASSEMBLY KIT – 57K0476
Request A Quote
Scope
  1. MANUFACTURED IN THE UNITED STATES, IS QUALIFIED TO MEET OR EXCEED ALL OF THE REQUIREMENTS OF MIL-PRF-62122(E)
  2. CONFORMS TO NATO STANAG 4074
  3. PROCUREMENT APPROVED, BY US ARMY TANK-AUTOMOTIVE COMMAND
  4. NSN 2590-01-303-0750
  5. GATEWAY CABLE COMPANY P/N 57K0476
  6. THIS KIT IS TO BE INSTALED IN ACCORDANCE WITH INS.DRAWING 12358392
Specifications

MATERIAL:

  • INSULATOR: MOLDED RUBBER
  • CONTACTS: COPPER ALLOY, ELECTROLESS NICKEL FINISH
  • DUST CAP: POLYCARBONATE
  • ADAPTER SLAVE: ALUMINUM

ELECTRICAL:

  • 24-28 VDC
  • 500 AMPS CONTINUOUS DUTY
  • 1000 AMPS OVERLOAD CAPACITY (6 MINUTES)
  • 0.5 MILLIOHMS MAXIMUM CONTACT RESISTANCE

ENVIRONMENTAL:

  • RESISTANCE TO CORROSION
  • RESISTANCE TO PETROLEUM PRODUCTS EXPOSURE
  • RESISTANCE TO OZONE EXPOSURE
  • RESISTANCE TO FUNGUS EXPOSURE

MATING INTERVEHICLE PLUG:

  • MPN 11682338
  • MPN MS52129
  • P/N TGC2338
