What is Megger Testing?
Megger testing is an insulation resistance test that measures how well a cable’s or component’s insulation resists electrical current leakage, using a device called a megohmmeter, commonly shortened to “megger.” Cable installers, electrical engineers, and maintenance teams use megger testing to assess insulation condition before or after installation, and periodically throughout a cable’s service life to catch degradation before it leads to failure.
On This Page
What is a Megger Test?

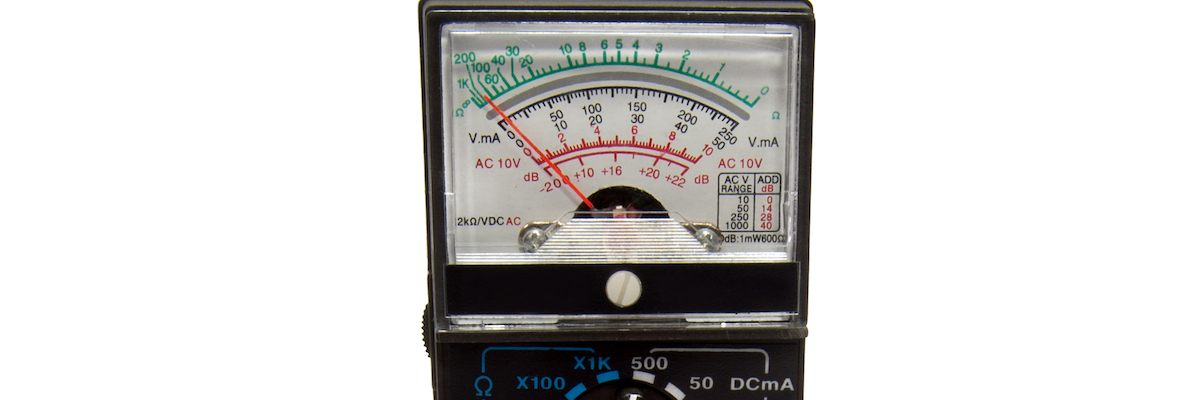

A megger test measures the integrity of a cable’s or component’s insulation in megohms, similar to how an ohmmeter measures resistance. The device itself consists of three main parts: an alligator clip or test lead, an analog or digital meter, and a button that generates a test current.
Faulty circuits or unstable current readings are often a sign of mechanical stress on insulation, which is one of the main reasons megger testing is used as a diagnostic step before assuming a component itself has failed.
When is Megger Testing Used?
Megger testing is typically performed at several points in a cable’s or system’s life:
- Before installation, to confirm insulation integrity on new cable or components.
- After installation, as an acceptance test before a system is energized.
- On a scheduled preventive maintenance basis, to track insulation condition over time.
- After a cable has been exposed to physical damage, moisture, or a known fault condition.
- Before re-energizing equipment that has been out of service for an extended period.
Gateway Cable Company’s engineering team considers insulation resistance testing standards like these when specifying cable and connector assemblies for military and industrial applications.
How to Use a Megger Tester
Megger testing follows a straightforward sequence:
- Turn off the circuit breaker or disconnect power to the device being tested.
- Locate a connection point on the wire or cable that exposes the conductor.
- Attach the alligator clip to the wire or cable and place the other meter probe on the exposed conductor, then press the test button.
- Allow the megger to generate a test current for 30 to 60 seconds to properly record the insulation’s resistance to current flow.
- Read the resistance value once the test cycle completes.
How to Read Megger Test Results
A megger test is meant to help determine whether a cable or component’s insulation is still fit for its intended function. As a general industry guideline, insulation resistance is often referenced in proportion to applied voltage, commonly cited as roughly 1 megohm per 1,000 volts. Actual acceptable ranges vary by cable type, voltage class, and the applicable test standard or manufacturer specification, so a single universal pass/fail number isn’t appropriate across all applications. Readings that fall well below what’s expected for a given system’s voltage and cable type are generally a sign that insulation has degraded and warrants further evaluation.
Cable insulation can degrade over time due to:
- Prolonged use
- Environmental exposure
- Stress and mechanical damage
- Excessive vibration
- Contamination from dirt, oil, or other substances
Once insulation is compromised, it can no longer reliably contain current at a safe rate. A cable that consistently tests below the expected range for its application should be evaluated for replacement.
Advantages and Considerations of Megger Testers
Advantages
- Suitable for testing a wide range of electrical equipment and cable types.
- Straightforward to operate with minimal training.
- A reliable, widely accepted method for assessing insulation condition.
Considerations
- Requires proper safety procedures, since improper use carries electrical risk.
- Higher-end units represent a meaningful equipment investment.
- Some models are bulkier and less practical for frequent field transport.
Overall, megger testers remain a standard diagnostic tool for electrical engineers and technicians assessing insulation condition and helping prevent electrical fires caused by degraded insulation.
