Faulty Thermistor Symptoms: Signs, Causes, and How to Test

Faulty thermistor symptoms include inaccurate or fluctuating temperature readings, erratic temperature control, equipment that overheats, underheats, or shuts down unexpectedly, and fault codes tied to a temperature sensor. Most thermistor failures trace back to heat damage, thermal cycling, moisture, vibration, or separation between the sensing element and its leads. Because a thermistor reports temperature as a change in resistance, a failing sensor feeds bad data to the control system, and the equipment responds to conditions that are not actually present. A multimeter resistance test is the most reliable way to confirm whether a thermistor has gone bad.

What is a Thermistor?

A thermistor, short for thermal resistor, is a temperature sensor whose electrical resistance changes significantly and predictably with temperature. Control systems read that resistance and convert it into a temperature value, which makes thermistors a common choice for temperature measurement, control, and compensation in HVAC systems, vehicles, appliances, battery systems, and industrial equipment.

There are two main types:

• NTC (negative temperature coefficient) thermistors: Resistance decreases as temperature rises. NTC thermistors are the most common type for temperature sensing.
• PTC (positive temperature coefficient) thermistors: Resistance increases as temperature rises. PTC thermistors are often used for overcurrent protection and self-regulating heating applications.

Common Faulty Thermistor Symptoms

A failing thermistor usually shows the same core warning signs regardless of the equipment it is installed in:

• Inaccurate temperature readings: The displayed or reported temperature does not match actual conditions.
• Fluctuating or unstable readings: Temperature values jump up and down without a real change in conditions.
• Erratic temperature control: Heating or cooling cycles on and off at the wrong times, runs continuously, or does not run at all.
• Overheating or underheating: The system overshoots or never reaches its target temperature.
• Unexpected shutdowns or lockouts: Protective controls shut the equipment down in response to a false temperature reading.
• Sensor-related fault codes: Control modules often log a temperature sensor fault when resistance falls outside the expected range.
• Visible damage: Cracked sensor bodies, damaged insulation, corroded leads, or heat discoloration at the sensor or its connections.

What Happens If a Thermistor Fails?

When a thermistor fails, the control system continues to act on its signal, so the equipment responds to a temperature that is not real. The result depends on how the sensor fails:

• Open circuit: Resistance reads extremely high or infinite. On an NTC thermistor, the controller typically interprets this as a very low temperature, which can cause overheating or a sensor fault.
• Short circuit: Resistance reads near zero. On an NTC thermistor, the controller typically interprets this as a very high temperature, which can trigger shutdowns or prevent heating.
• Drift: Resistance shifts gradually away from its rated curve. Drift is harder to spot because the system keeps running, but temperature control becomes less accurate over time.
• Intermittent failure: A damaged lead or loose connection causes readings to cut in and out, producing erratic behavior that may come and go with vibration or temperature changes.

Bad Thermistor Symptoms by Application

The underlying failure is the same, but the symptoms look different depending on what the thermistor controls.

Because many of these symptoms can also come from wiring, control board, or other component faults, testing the thermistor directly is the only way to confirm it is the cause.

What Causes Thermistor Failure?

Thermistor failure is usually the result of physical or thermal stress over time. The most common causes include:

• Mechanical separation: The bond between the sensing element and its lead wires breaks down, creating an open or intermittent connection.
• Thermal cycling and thermal mismatch: Repeated heating and cooling stresses materials that expand at different rates, leading to cracks and lead separation.
• Heat damage: Exposure to temperatures beyond the thermistor’s operating range can permanently shift its resistance curve.
• Moisture and corrosion: Water ingress degrades the sensor coating, leads, and connections, especially in outdoor or high-humidity environments.
• Vibration and improper handling: Shock, vibration, and rough installation can crack the sensor body or fatigue its leads.
• Electrical overstress: Excess current or voltage can overheat the element and damage it internally.

Do Thermistors Go Bad?

Yes. Thermistors can fail suddenly or degrade gradually. Sudden failures usually show up as an open or shorted sensor and a clear fault. Gradual failures show up as drift, where readings slowly move away from actual temperature. Service life depends on operating temperature, thermal cycling, moisture exposure, vibration, and sensor construction, so sensors in harsh environments generally need more frequent inspection.

How to Tell If a Thermistor is Bad

A multimeter resistance test confirms whether a thermistor is working. Before testing, inspect the wiring, terminals, and connectors between the sensor and the controller. A loose, corroded, or damaged connection can produce the same symptoms as a failed thermistor.

1. Turn off and disconnect power to the equipment.
2. Disconnect the thermistor from the circuit so other components do not affect the reading.
3. Find the thermistor’s rated resistance, typically listed at 25°C (77°F), from its datasheet, part number, or the equipment’s service documentation.

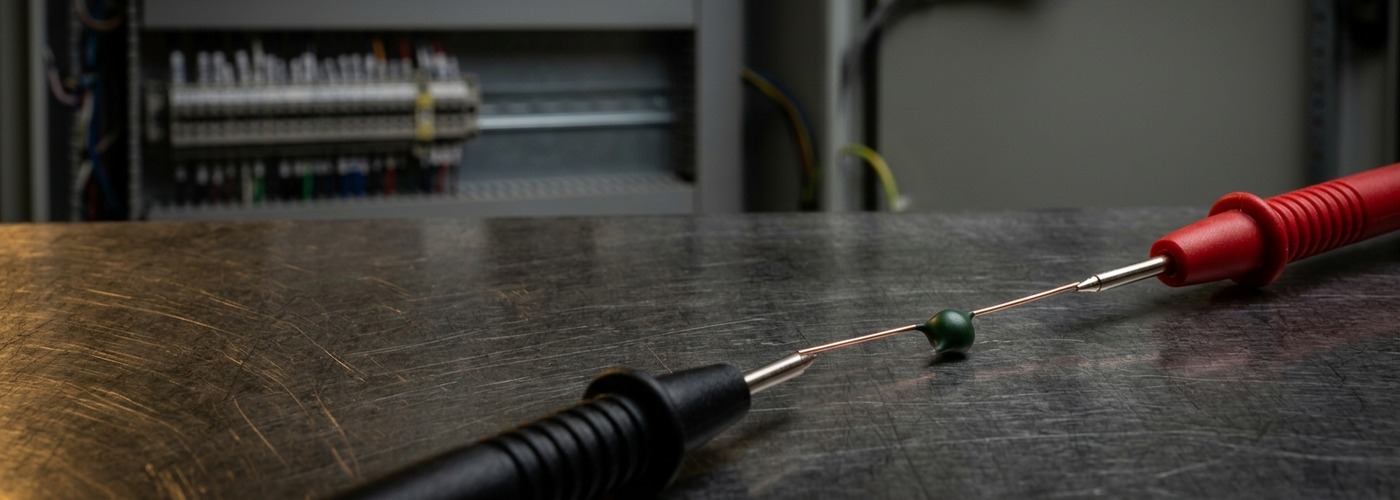

4. Set the multimeter to resistance (ohms) and measure across the thermistor leads at room temperature.
5. Compare the reading to the rated value. A reading of infinite resistance (open), near zero (short), or far outside the rated tolerance indicates a failed thermistor.
6. Apply gentle, controlled heat to the sensor and watch the reading. Resistance should fall smoothly on an NTC thermistor and rise on a PTC thermistor.
7. Replace the thermistor if the reading does not change, changes in the wrong direction, or jumps erratically.

For a step-by-step walkthrough, see our guide on how to test a thermistor.

How to Choose a Replacement Thermistor

A replacement thermistor must match the resistance behavior the control system expects. A sensor with the wrong curve can read accurately at one temperature and incorrectly at others. Before sourcing a replacement, confirm:

• Type: NTC or PTC, matching the original sensor.
• Rated resistance: Nominal resistance, typically at 25°C.
• Resistance curve or B value: How resistance changes across the temperature range.
• Tolerance: The accuracy the application requires.
• Operating temperature range: The range the sensor will see in service.
• Package and mounting style: The form factor and mounting method the installation requires.
• Leads and termination: Lead length, wire type, and connector requirements.

Providing the original part number, datasheet, or equipment documentation is the fastest way to match a replacement. Gateway Cable Company works with procurement teams and engineers to match replacement components, along with the cable assemblies and power distribution components that connect them.
